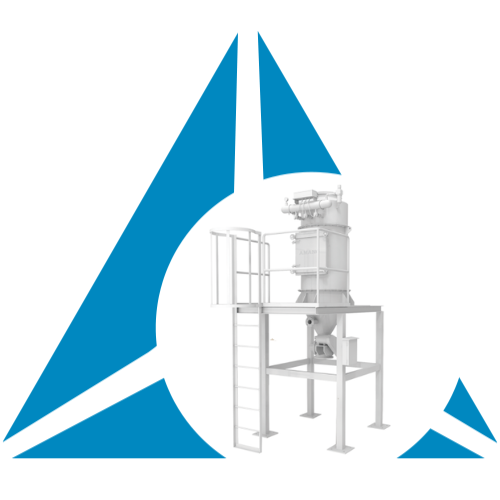

CT Series
Large scale dust collector for high pressure application
Woven filter
Pulse jet
General dry dust
Max. filter
Large scale dust collector for high pressure application
Woven filter
Pulse jet
General dry dust
Max. filter
Structurally resistant against high vacuum pressure makes it ideal for pneumatic conveying or central cleaning application.
Features
The CT series can be used in high pressure environments of up to 30kPa, which is not possible with normal dust collectors.
It can be made-to-order for application up to 56.9 kPa.
Suitable for high-pressure applications such as long-distance dust collection, central cleaning, and product recovery.
When equipped with a blower motor and inverter control unit, it can be used as an ideal suction source for central cleaning system.
Wide variety of filters are available for selection to suit the need of various application.
Features
The CT series can be used in high pressure environments of up to 30kPa, which is not possible with normal dust collectors.
It can be made-to-order for application up to 56.9 kPa.
Suitable for high-pressure applications such as long-distance dust collection, central cleaning, and product recovery.
When equipped with a blower motor and inverter control unit, it can be used as an ideal suction source for central cleaning system.
Wide variety of filters are available for selection to suit the need of various application.
Structurally strong to withstand high pressure application
Suitable for central cleaning or pneumatic conveying system
Wide variety of filter selections
Various filter are available
Standard material: Polyester
Corresponding models: CT
Application: General dry dust with particle size of about 10μm)
Heat resistance temperature: 40 °C (104 °F)
Acid resistant: Average
Alkaline resistant: Average
Optional filter: Finefil filter, Anti-Electrostatic filter, Finefil Anti-Electrostatic filter etc.
Corresponding models: CT
Application: General dry dust with particle size of about 10μm)
Heat resistance temperature: 40 °C (104 °F)
Acid resistant: Average
Alkaline resistant: Average
Optional filter: Finefil filter, Anti-Electrostatic filter, Finefil Anti-Electrostatic filter etc.
Finefil
Tetoron
Pyrene
PPS
PTFE
P84
Tefaire
Heat-resistant

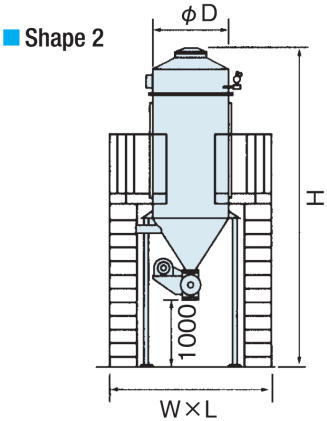

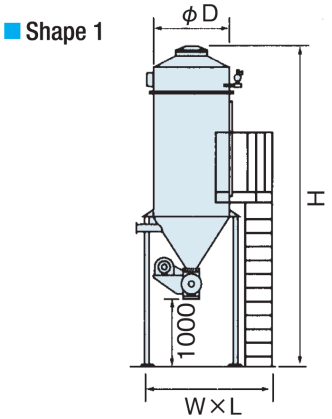

External View
