IS-15
Compact Dust Collector
Molded filter
Manual Shaking
General dry dust
Max. airflow
Premium efficiency motor
Compact Dust Collector
Molded filter
Manual Shaking
General dry dust
Max. airflow
Premium efficiency motor

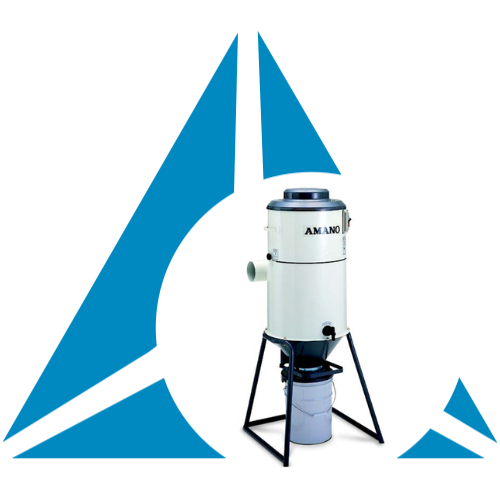

Amano IS-15 dust collector is a compact dust collector that uses hybrid separation mechanism from a combination of swirling airflow and large-area filter.
Features:
Features:
- Dust separation by swirling airflow.
- Large-area filter provides performance stability and longer lifespan.
- Easy filter replacement.
- Filter cleaning is via manual vibration .
Swirling flow separation
Large-area filter
Compact
Mold cartridge filter
Standard material: Polyester
Corresponding models:IS-15
Application: General dry dust with particle size of about 10μm
Heat resistant temperature: 40 °C ( 104 °F )
Optional filter: Finefil filter
Corresponding models:IS-15
Application: General dry dust with particle size of about 10μm
Heat resistant temperature: 40 °C ( 104 °F )
Optional filter: Finefil filter
Dust Disposal
Commercially available pails can be used as discharge bucket.
It is convenient for discharging and storing dust.
It is convenient for discharging and storing dust.
Inlet port and bucket removal orientation
There are 6 options for inlet port and bucket removal orientation.
The orientation can be set by rearranging the connection between
main body and lower body. Consider the orientation carefully so
that it will not pose any obstruction for filter replacement work.
The orientation can be set by rearranging the connection between
main body and lower body. Consider the orientation carefully so
that it will not pose any obstruction for filter replacement work.
Filter cleaning
Filter cleaning is by manual vibration or shaking. It is easy to do,
just by turning the vibration/shaking knob to the left and right.
just by turning the vibration/shaking knob to the left and right.
Filter replacement
Open the top part of the unit to replace the filter. It has a locking mechanism
for safety during replacement. The filter can be easily replaced without tools.
Filters are consumable part therefore periodic inspection and replacement are required.
for safety during replacement. The filter can be easily replaced without tools.
Filters are consumable part therefore periodic inspection and replacement are required.

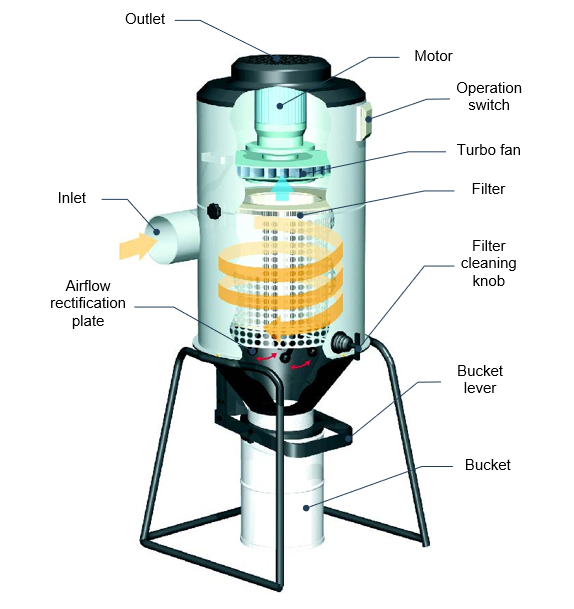

Reducing burden on filter and dust separation by swirling airflow
The dust-laden air is sucked through the inlet becomes a high-speed airflow that swirls and descends along the
inside surface of the main body. At this time, the outer airflow will becoming highly concentrated with dust,
while only the inner airflow with a low dust concentration is filtered by the filter. The dust in the outer airflow
will fall into the lower bucket without coming into contact with the filter. This primary separation process
separates approximately 50% of the dust, reducing the burden on the filter.
Airflow is uniformly distributed over the filter surface by airflow rectification plate inside the main body.
This prevents uneven load on the filter at certain parts. Thus, prevents excessive wear in certain areas
and achieves efficient dust collection.
