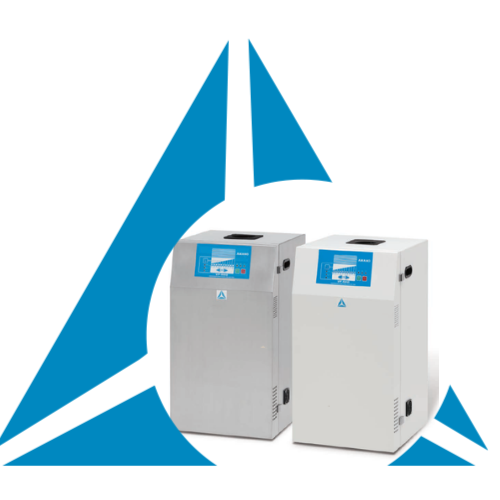

VF-5HG
Deodorization fume collector
Dust collector for laser marker
Deodorization fume collector
Dust collector for laser marker
The "ace" among fume collectors for laser marker. Ensuring long filter lifespan through automatic constant airflow control.

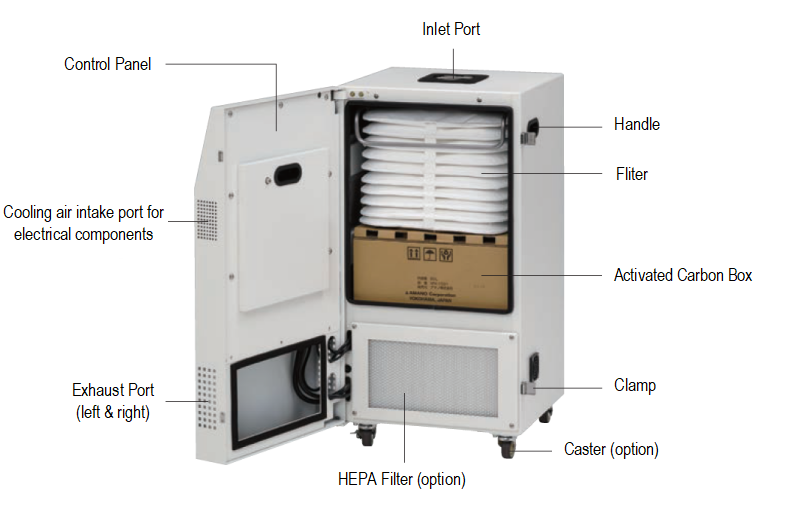

Outline
Features:Outline
- Automatic operation at the pre-set airflow rate. Prevents excessive airflow during initial filter operation, ensuring long filter life.
- Built-in with high pressure blower, therefore even as filter begins to clog, the suction power is maintained for an extended period.
- Coming with electret filter for fume collection and activated carbon for deodorization.
- Activated carbon effectively removes organic solvent-based odors that are harmful to the human body.
- No tools are required to replace the filter and activated carbon.
- HEPA filter is available as option.
- LED indicator lamp to show any decrease of airflow or to indicate that it is time to replace the filter.
Longer filter lifespan
Contributing to the prevention of health hazards
Easy to use
Electret Filter
Standard material:Polyester + polyethylene + polypropylene
Corresponding models:VF-5HG
Application:Fume collection during laser marking process
Heat resistant temperature:40 °C (104 °F)
Corresponding models:VF-5HG
Application:Fume collection during laser marking process
Heat resistant temperature:40 °C (104 °F)
Activated carbon box
Activated carbon for deodorization is easy to replace.
There is no need to refill the activated carbon.
Just replace the activated carbon box when needed.
There is no need to refill the activated carbon.
Just replace the activated carbon box when needed.
HEPA filter (option)
Capable to collect 99.97% of 0.3μm particles
Capable to collect 99.97% of 0.3μm particles

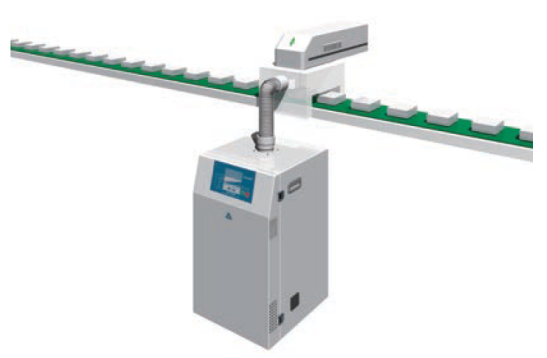

Merit
- Improves workplace environment. Prevents scattering of fume and powder.
- Prevents adhering of fumes onto products. Maintain products quality.
- Eliminates bad odors during resin processing. Prevents workers from being exposed to bad odors.
- Protects and prevents adhering of dirt onto laser marker lens. Maintain marking/print quality.
Application
Removal of harmful dust, fumes and odors generated by laser markers etc.
Removal of harmful dust, fumes and odors generated by laser markers etc.

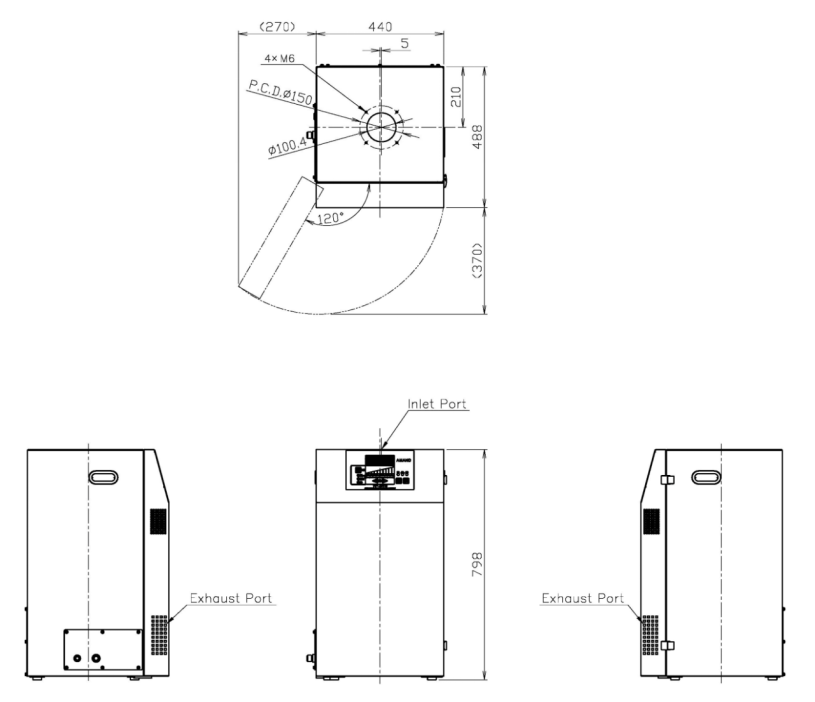

External Dimension
Specification
| Particular | Unit | VF-5HG | |
| Power Supply | 3-Phase 200V 50/60Hz | 1-Phase 100V 50/60Hz | |
| Motor | Brushless Blower Motor | ||
| Output | kW/HP | 1.1 / 1.4 | 0.875 / 1.1 |
| Max. Air Flow | m³/min | 3.0 ± 0.3 | 2.8 ± 0.3 |
| Max. Static Pressure | kPa | 20 ± 3.0 | 17 ± 2.3 |
| Noise Level | dB[A] | Not more than 70 ± 2 | |
| Filter | Area | m² | 2.3 (Internal-surface filtration) |
| Capacity (internal volume) | L | 15 (approx.) | |
| Material | Electret | ||
| Collection performance | 2.0 μm particles 99.9% | ||
| Quantity | 1 | ||
| Deodorizer | Activated carbon ( 20L [8.4kg] ) | ||
| Power cord | m | 2.8 (without plug) | |
| Inlet port size | mm | ∅100 | |
| Suction Port (option) | mm | ∅38, ∅50, ∅65 | |
Dimensions
(WxDxH) |
mm | 440 x 488 x 798 | |
| Weight | kg | 78 (inclusive deodorizer) | |
| Option | HEPA filter (filter 0.3μm particles at 99.97% or more) | ||
| Operation environment temperature | °C | 5 ~ 40 | |
| Suction Temperature | °C | 0 ~ 40 | |
| External Plate Material | Iron structure: Finish Coating JPMA F35-85A | ||
| Stainless steel: Hairline Finish | Operation control | Automatic constant air flow control | |
| kg | (setting range: 0.4~2.2 m3/min) |
