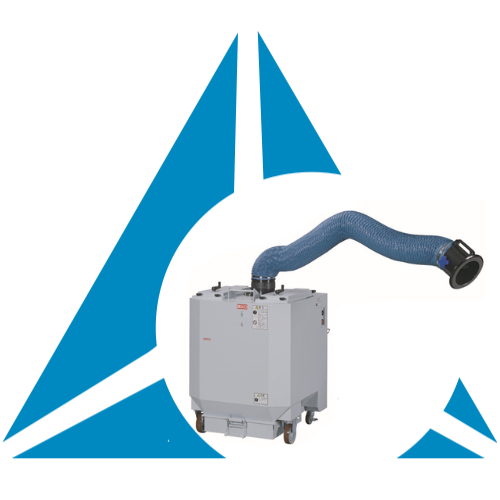

FD-10
Portable Fume Collector
Molded filter
Manual Shaking
Fumes
Max. airflow
Premium efficiency motor
Portable Fume Collector
Molded filter
Manual Shaking
Fumes
Max. airflow
Premium efficiency motor
Portable fume collector for welding work or similar applications. It is equipped with swing arm, caster wheels and built-in fire
extinguishing mechanism for increased safety.

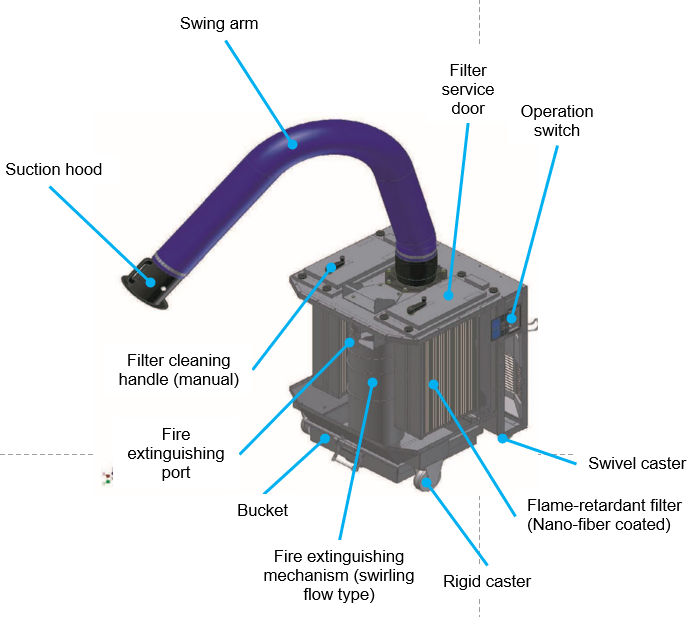

Outline
Features:Outline
- Suction hood and swing arm.
- Portable and coming with caster wheels.
- Equipped with fire extinguishing mechanism.
- Filter can be cleaned manually via shaking/vibrating handle.
- Flame-retardant filter.
Suction hood and swing arm
Fire extinguishing mechanism
Flame-retardant filter

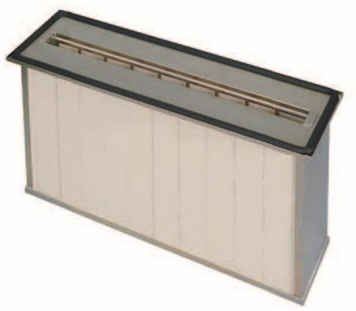

Nanofiber filter
Standard material:PET blend cellulose
Corresponding models:FD-10
Application:Dry fine dust with particle size of about 10μm or less and fumes
Heat resistant temperature:40 °C (104 °F)
Corresponding models:FD-10
Application:Dry fine dust with particle size of about 10μm or less and fumes
Heat resistant temperature:40 °C (104 °F)

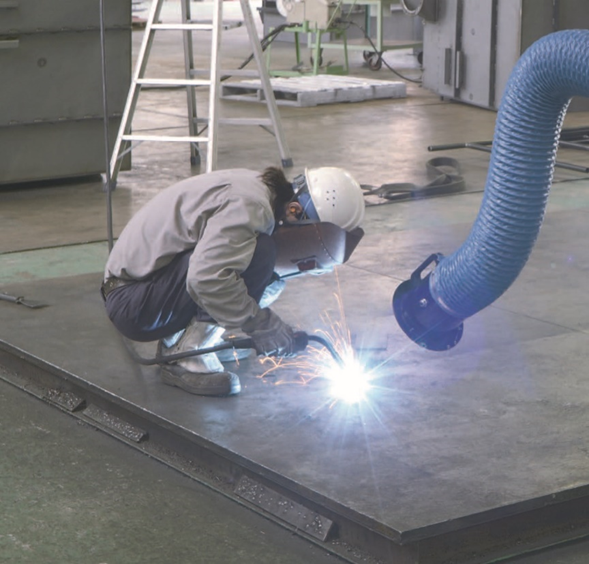

Suction hood & swing arm
Equipped as standard, the hose and suction hood can be freely moved within 1.7m radius.
Therefore, dust collection can be completely carried out at the most optimal position.
Therefore, dust collection can be completely carried out at the most optimal position.
Portable
Compact body and casters allow it to be easily moved to the welding work site.
Compact body and casters allow it to be easily moved to the welding work site.
Built-in fire extinguishing mechanism
Sparks and other fiery particles contained in the extracted air are extinguished as they pass through the "fire extinguishing mechanism (swirl flow type)",
and welding fumes are captured by the filter at the subsequent stage.
and welding fumes are captured by the filter at the subsequent stage.

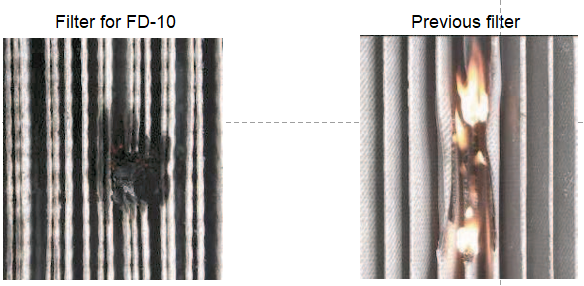

Flame-retardant filter
The filter is a flame-retardant material made of synthetic cellulose and polypropylene.
The filter is a flame-retardant material made of synthetic cellulose and polypropylene.
Large filter area
Eventhough the nanofiber-coated filter is quite compact, it has a large filter area that enable full collection of welding fumes.
Eventhough the nanofiber-coated filter is quite compact, it has a large filter area that enable full collection of welding fumes.

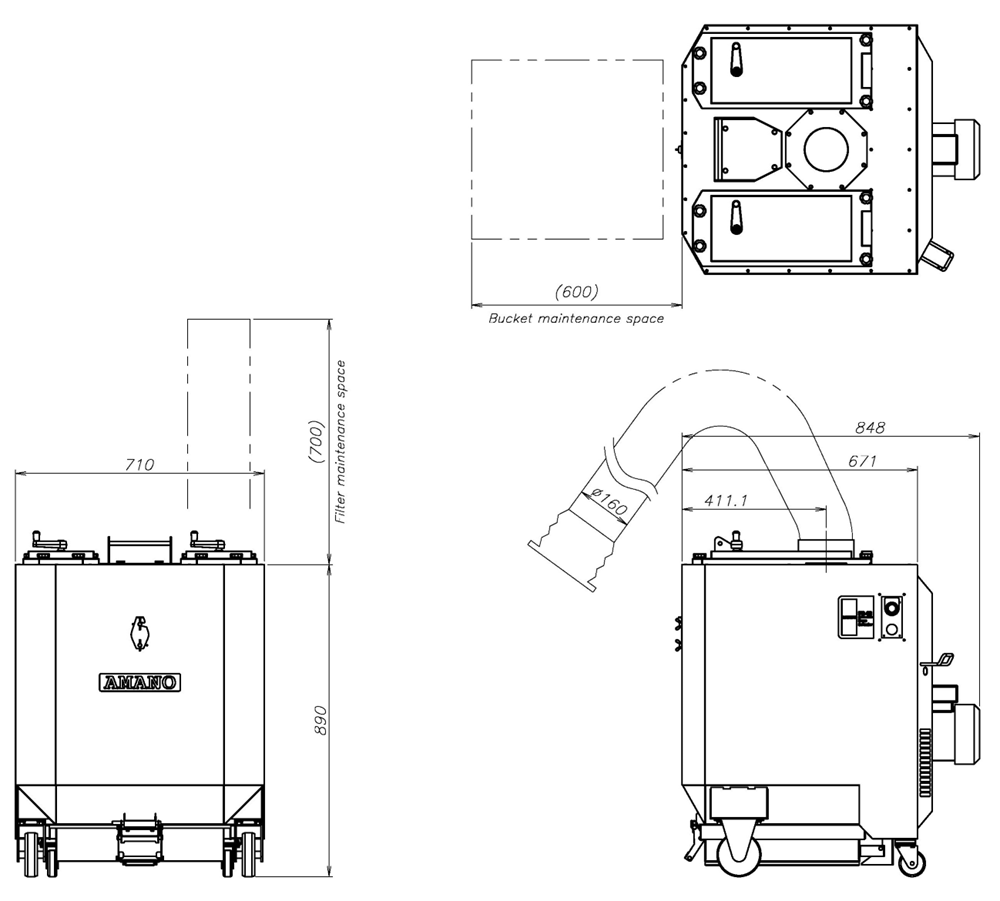

External Dimension
Specification
| Particular | Unit | FD-10 |
| Power Supply | 3-Phase 200V 50/60Hz | |
| Output | kW/HP | 0.75 / 1 |
| Max. Air Flow | m³/min | 9.0 |
| Max. Static Pressure | kPa | 2.5 |
| Filter Area | m² | 20 |
| Flexible Hose | mm | ∅160 |
Dimensions
(WxDxH) |
mm | 710 x 865 x 987 |
| Weight | kg | 150 |
