SP Series
Stainless steel body dust collector
Woven filter
Manual Shaking
General dry dust
Max. airflow
Premium efficiency motor
Stainless steel body dust collector
Woven filter
Manual Shaking
General dry dust
Max. airflow
Premium efficiency motor
Stainless steel body dust collector suitable for dust collecting application in foodstuff or pharmaceutical industries, where hygroscopic and deliquescent powders are often handled.
Features:
Features:
- Stainless steel (SUS304) body with external surface buffing at #400 (fan motor and other electrical components are not stainless steel).
- Filters can be installed or replaced just by operating the lever without using any tools and screws. This reduce time consumes for filter installation or replacement work.
- Built-in filter shaking mechanism for filter cleaning.
- Filters are water washable, provided that the powder is water soluble.

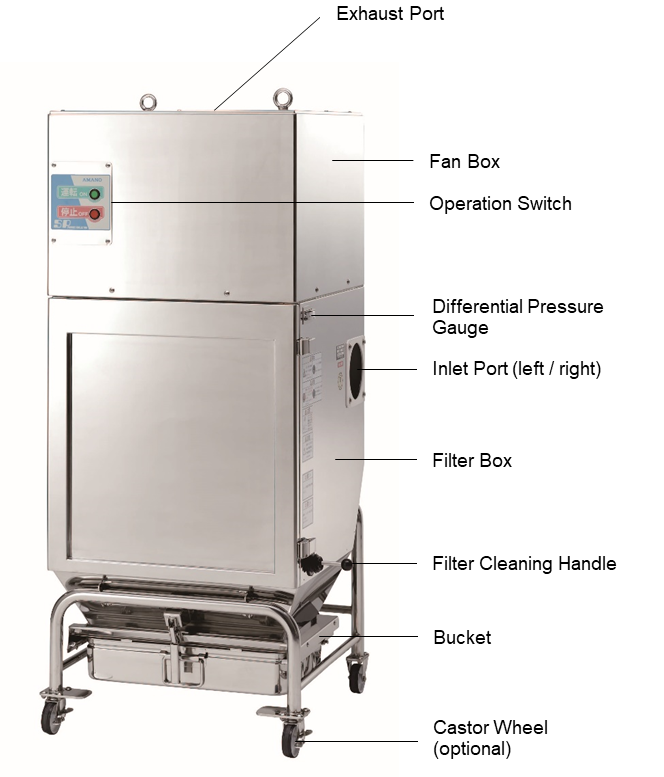

Stainless steel body construction suitable for sanitary application
Internal part can be easily cleaned or washed
Water washable filters
Overview

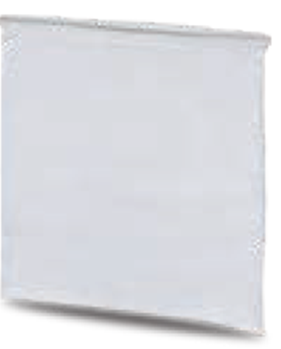

Woven plate filter
Standard material: Polyester
Corresponding models: SP Series
Application: Dry dust with particle size of about 10μm
Heat resistant temperature: 40 °C (104 °F)
Optional filter: Anti-Electrostatic, Finefil, Finefil Anti-Electrostatic
(Note: Finefil and Finefil Anti-Electrostatic filters are not water washable)
Corresponding models: SP Series
Application: Dry dust with particle size of about 10μm
Heat resistant temperature: 40 °C (104 °F)
Optional filter: Anti-Electrostatic, Finefil, Finefil Anti-Electrostatic
(Note: Finefil and Finefil Anti-Electrostatic filters are not water washable)

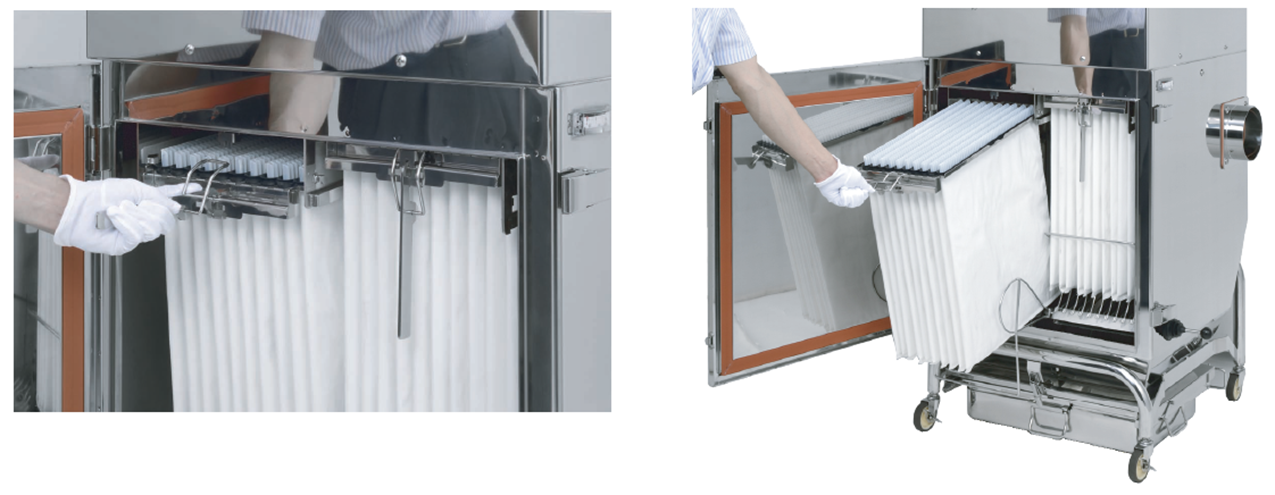

Filters installation or replacement is easy
Without using tools operate the lever accordingly to install or remove the filter.
Without using tools operate the lever accordingly to install or remove the filter.
Filter is water washable
The filters can be easily removed by simply pulling them upwards from the frame one by one, and then wash with water accordingly.
The filter is washable only if the powder is water-soluble. Otherwise, the filter is not suitable for washing
if the powder is not water-soluble.
The filters can be easily removed by simply pulling them upwards from the frame one by one, and then wash with water accordingly.
The filter is washable only if the powder is water-soluble. Otherwise, the filter is not suitable for washingif the powder is not water-soluble.

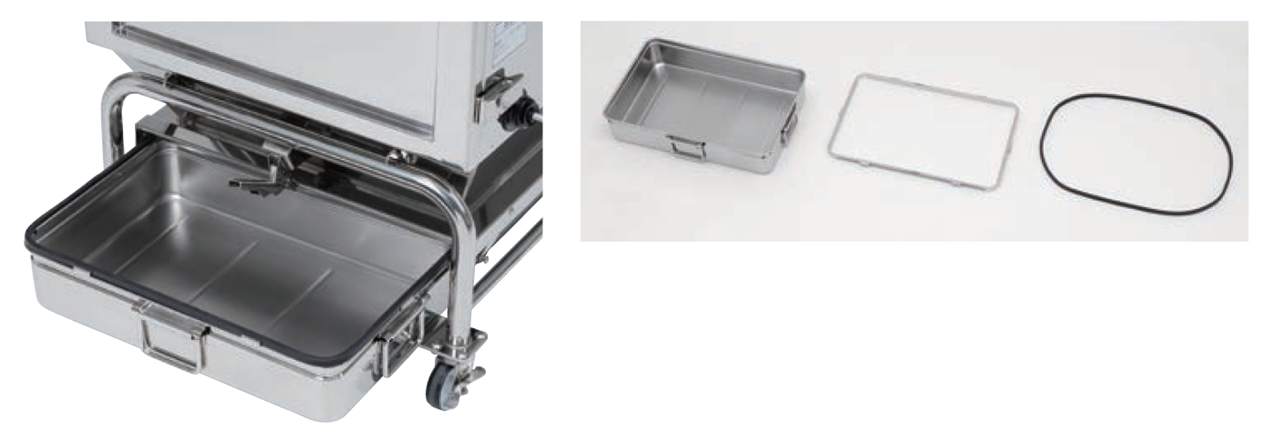

Cleaning of bucket is easy
The lightweight bucket is made of thin plate and packing can be easily removed.
The lightweight bucket is made of thin plate and packing can be easily removed.
External Dimension

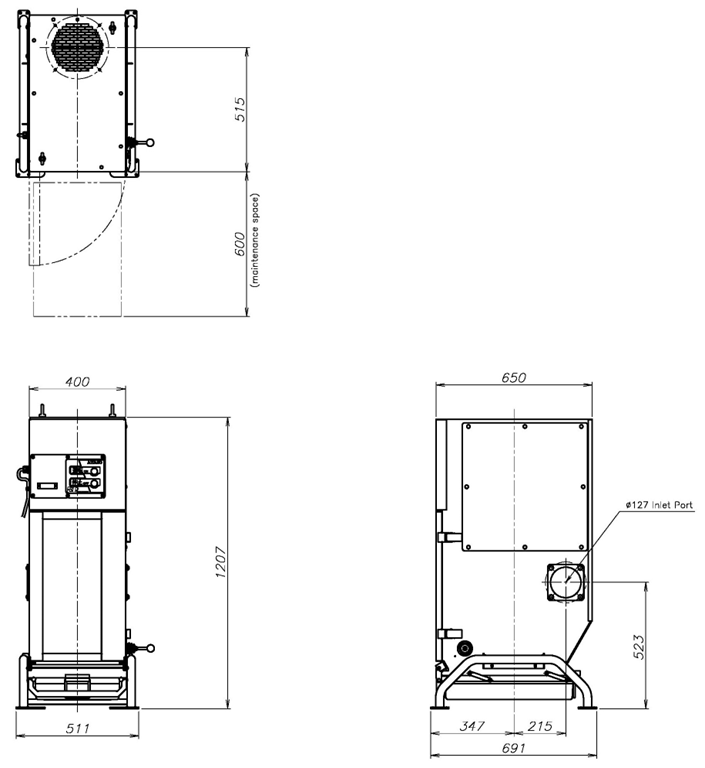

SP-15

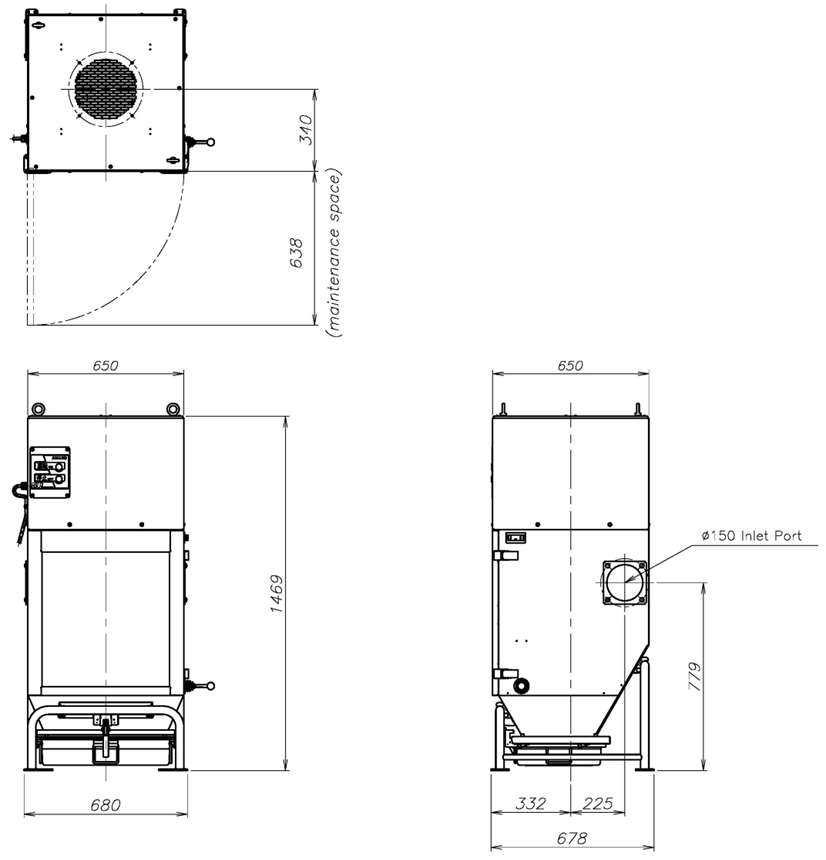

SP-30

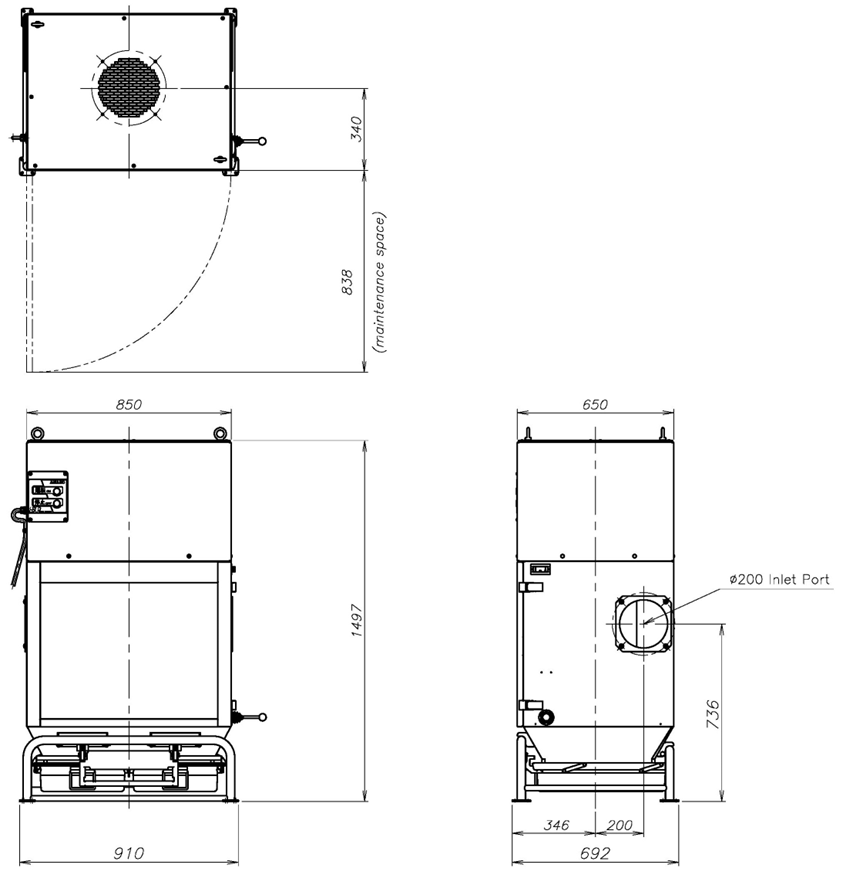

SP-45

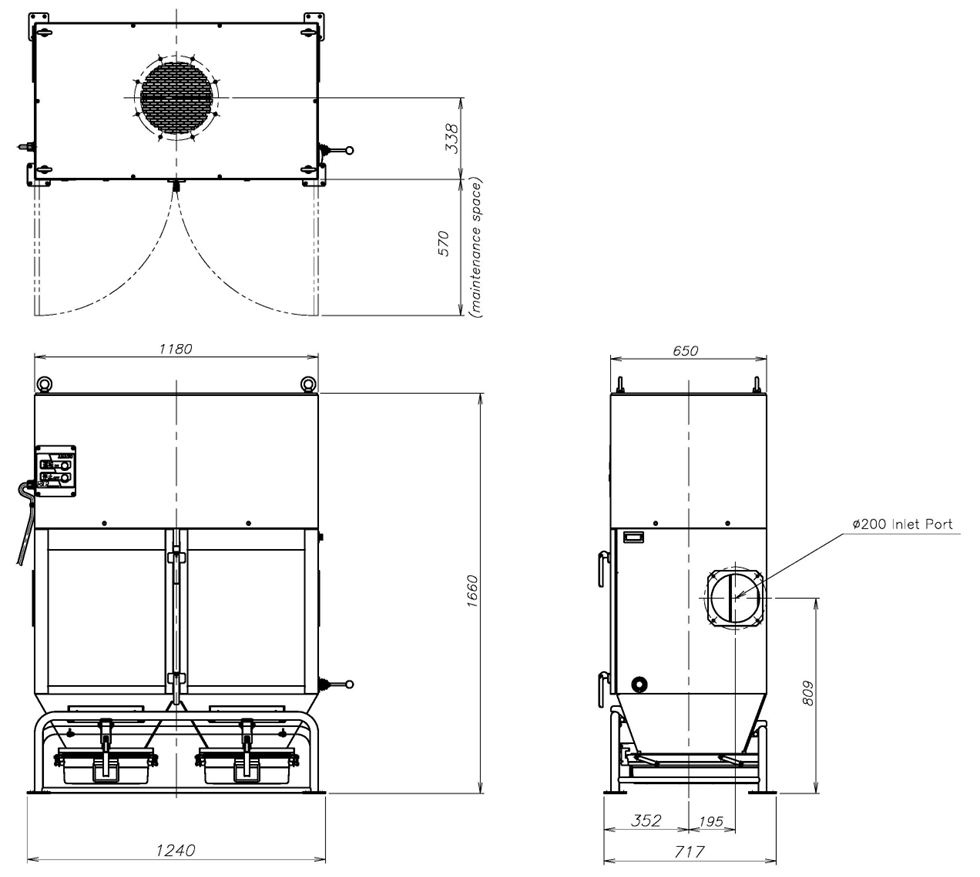

SP-60
Application
Weighing, sifter, feeding process into mixer etc., draft chamber, cleaning booth dust collection, filling machine, packaging machine etc.
Weighing, sifter, feeding process into mixer etc., draft chamber, cleaning booth dust collection, filling machine, packaging machine etc.
Specification
| Particular | Unit | sp-15 | sp-30 | sp-45 | sp-60 | |||||||||||
| Power Supply | 3-Phase 200V 50/60Hz | |||||||||||||||
| Output | kW/HP | 0.75/1 | 1.5/2 | 2.2/3 | 3.7/5.0 | |||||||||||
| Air Flow | m³/min | 0 | 7.5 | 12 | 0 | 15 | 28 | 0 | 22 | 40 | 0 | 30 | 55 | |||
| Static Pressure | kPa | 2.45 | 1.70 | 0.69 | 2.55 | 2.26 | 1.27 | 2.55 | 2.35 | 1.37 | 2.90 | 2.55 | 1.22 | |||
| Filter Area | m² | 4.5 | 9.0 | 13.5 | 18.0 | |||||||||||
| Suction Port Ø | mm | 127 | 150 | 200 | 200 | |||||||||||
Dimensions
(WxDxH) |
mm | 400 x 650 x 1207 | 650 x 650 x 1469 | 850 x 650 x 1497 | 1180 x 650 x 1660 | |||||||||||
| Weight | kg | 92 | 145 | 185 | 250 | |||||||||||
